IBM z13s (IBM 2965) SPECS

Elevate your mainframe server performance with a refurbished IBM z13s that packs speed, intelligence and security into a compact footprint. Our selection of used IBM z13s products utilize a hybrid cloud environment and real-time analytics to improve the capabilities of your IT infrastructure. The z13s is designed to scale during times of peak demand, with dynamic provisioning of key resources for increased reliability. Gain processing power and reduce security risks with this capable line of IBM mainframe servers.

IBM Z13s 2965 EOSL

Highlights

The IBM z13s (z13s) is machine type 2965. With improved processor performance, increased capacity, new hybrid computing capabilities, and significant power, space, and cooling benefits, the z13s is a perfect fit for infrastructure simplification and cloud computing. The z13s is a single frame system with a 4.3 GHz processor frequency and increased cache sizes.

The IBM z13s is designed to help transform business and tackle tough real-time business challenges. It provides impressive scale in terms of memory, I/O, and processing power in a single frame that can quickly respond to dynamic changes in business growth or fluctuations. The z13s also helps you meet your service level agreements by allowing you to deliver real-time information and insight from data that can give your business the advantage of more timely business decisions. The use of IT to change how you approach your basic core business models, such as by deploying hybrid cloud, analytics, and new appliances, can help maximize revenue while improving the client experience.

The z13s expands the breadth of the IBM z Systems family by delivering a strong range of new smaller-capacity, attractively priced models with significantly more capacity than the zBC12. With up to 4 TB of memory and up to 20 configurable processor units, the z13s will advantage traditional, hybrid, and emerging marketing users. IBM z/OS supports the new processor with significant enhancements to operating system design optimized for scalability, cost savings, advanced compression capabilities, reliability, availability, and serviceability. The new multithreaded processor design benefits Linux application servers, database servers, as well as analytic and cloud workloads running in PR/SM mode under z/VM, under Kernel-based Virtual Machine (KVM) for IBM z Systems, or Linux in LPAR, as well as in IBM Dynamic Partition Manager (DPM) mode under KVM for IBM z Systems or Linux in LPAR. Users may see performance benefits when taking advantage of large shared, virtualized memory without having to change footprint size or energy requirements. New clients may consolidate the footprint and reduce the energy envelope. Taking advantage of large memory can reduce latency and CPU cost, and thus improve operational efficiency – particularly when considering today’s analytical, mobile, and hybrid cloud deployments. Delivered with security and availability, the z13s provides enhancements to protect your users, your clients, and your business.

The IBM z13s and enhancements to the existing IBM z13.

IBM z13s securely delivers hybrid cloud and mobile capabilities along with cyber security within reach of small and mid-size companies. This extends IBM z Systems leadership with the following:

  • Trusted, secure, and reliable operations for reduced business risk
    • Stronger and faster protection with integrity of data across a hybrid cloud environment with the new Crypto Express5S.
    • Enhanced public key support for constrained digital environments using cryptography for users of applications such as Google Chrome, Mozilla Firefox, and Apple iMessage, enhancing your cyber security.
    • Ability to minimize reformatting of databases with new exploitation of Visa Format Preserving Encryption (FPE) for payment processing.
    • Faster insight into the health of your Linux system with new IBM zAware pattern recognition analytics extended to Linux on z Systems for a step into the cognitive era.
  • Traditional data serving and transactional processing
    • Up to 20 configurable processors (1.5x more than your zBC12) and 40 LPARs (compared to 30 on your zBC12), allowing businesses to scale as needed.
    • With up to 4 TB of memory, the ability to make business decisions at a faster pace and improve response times to your clients. New memory packaging and pricing open up opportunities such as in-memory data marts and in-memory analytics, giving you the necessary room to tune applications for optimal performance.
    • Economies of scale with simultaneous multithreading delivering more throughput for Integrated Facility for Linux (IFL) and z Integrated Information Processor(zIIP)-eligible workloads.
  • Operational efficiency
    • With an enhanced “share all” virtualization environment for both cryptographic and networking features and LPARs, z13s helps businesses improve resource sharing while spending less on hardware capacity.
    • New optional rack-mounted Hardware Management Console, previously unavailable on the zBC12, can help to save space where it is a premium in data centers.
    • Single Instruction Multiple Data (SIMD), a vector processing model providing instruction-level parallelism, can speed workloads such as analytics and mathematical modeling.
  • A design for the z13s and z13 intended to:
    • Optimize internal LPAR to LPAR communications within a CPC transparently, with no changes to applications, using Shared Memory Communications – Direct Memory Access (SMC-D).
    • Improve Time-To-Value with faster deployment and implementation of software solutions delivered as virtual software appliances and firmware appliances with z Appliance Container Infrastructure (zACI).
    • Simplify z Systems hardware and virtual infrastructure management for KVM for IBM z Systems including integrated dynamic I/O management with IBM Dynamic Partition Manager (DPM).
  • Full upgradability to z13s from IBM zEnterprise BC12 and zEnterprise 114, and full upgradability within the z13s family.
  • Full upgradability to z13 from IBM zEnterprise EC12 and zEnterprise 196, and full upgradability within the z13 family.

Upgrade Path

A z13s Model N10 can be upgraded to a z13s Model N20 hardware model. The upgrades to N20 are disruptive (that is, the system is not available during the upgrade). Any zBC12 or z114 model can be upgraded to a z13s N10 or N20 model, which is also disruptive.

z114 upgrade to z13s server
When a z114 is upgraded to a z13s server, the z114 Driver level must be at least 93. If a zBX is involved, the Driver 93 must be at bundle 27 or later. Family to family (z114 or zBC12) upgrades are frame rolls, but all z13s upgrade paths are disruptive.

zBC12 upgrade to z13s server
When a BC12 is upgraded to a z13s server, the zBC12 must be at least at Driver level 15. If a zBX is involved, Driver 15 must be at Bundle 22 or later.

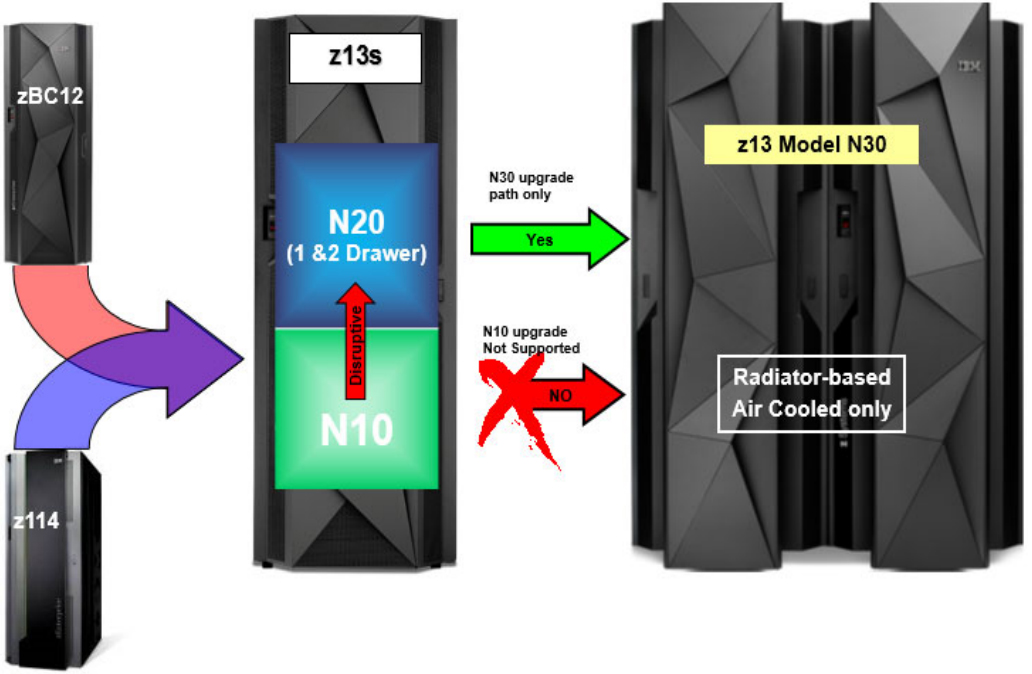

Diagram of the z13s by IBM model 2965 upgrade path

Technical Overview

The z13s is designed to help tackle your toughest real-time business challenges. It provides impressive scale in terms of memory, I/O, and processing power in a single frame that can quickly respond to dynamic changes in business fluctuations. z13s delivers real-time analytics and hybrid cloud capabilities to companies of all sizes.

This extends IBM z Systems leadership with z13s, offering:

  • Exceptional scale in a small footprint with up to 6 CPs for 1.3x the z/OS capacity of a zBC12 and up to 20 IFLs for 2.1x total system capacity compared to the zBC12 which had a maximum of 13 IFLs. This provides an excellent platform for deploying cloud, analytics, and mobile solutions.
  • Economies of scale with simultaneous multithreading delivering more throughput for Linux and zIIP-eligible workloads
  • Enhanced cryptographic and partitioning offerings that can help ensure the real-time protection and integrity of data across an enterprise cloud environment
  • More memory, cache enhancements, and improved I/O bandwidth to serve up more data to support exponential mobile transaction volumes
  • Real-time insights at the point of impact with integrated analytics and transaction processing
  • Data and services that are securely delivered , with minimal risk, on the most reliable platform
  • The flexibility of hybrid cloud deployment
  • Improved performance of complex mathematical models, perfect for analytics processing, with Single Instruction Multiple Data (SIMD)
  • IBM zAware cutting-edge pattern recognition analytics for fast insight into system health extended to Linux on z Systems
  • IBM Integrated Coupling Adapter (ICA SR), which offers greater short-reach coupling connectivity than existing link technologies and enables greater overall coupling connectivity per CPC footprint than prior server generations
  • New rack-mounted Hardware Management Console (HMC) helping to save space in the data center

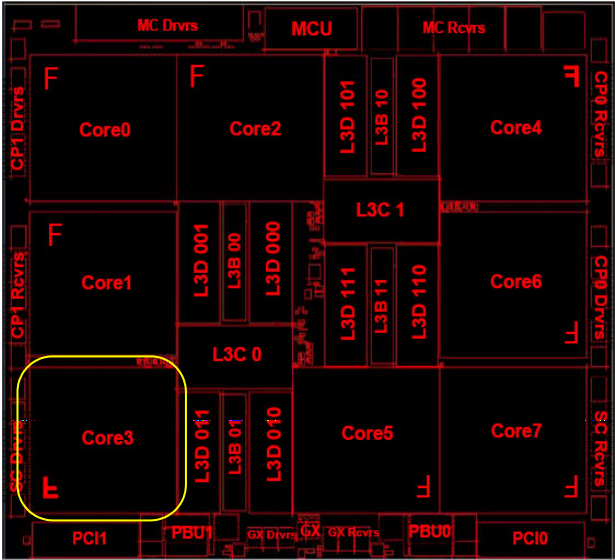

z13s 13-Core Chip Details

The z13s PU chip (installed as a PU SCM) is an evolution of the zBC12 core design. It uses CMOS 14S0 technology, out-of-order instruction processing, pipeline enhancements, dynamic simultaneous multithreading (SMT), single-instruction multiple-data (SIMD), and redesigned, larger caches.Schematic of the processor for the z13s IBM 2965

By design, each PU chip has eight cores. Core frequency is 4.3 GHz with a cycle time of 0.233 ns. When installed in a z13s server, the PU chips have either six or seven active cores. This limit means that a Model N10 has 13 active cores, and the Model N20 has 26 active cores. Model N10 has 10 customizable cores, whereas Model N20 has 20 customizable cores.

Each PU chip has 3.99 billion transistors. Each one of the eight cores has its own L1 cache with 96 KB for instructions and 128 KB for data. Next to each core is its private L2 cache, with 2 MB for instructions and 2 MB for data. Each PU chip has one L3 cache, with 64 MB. This 64 MB L3 cache is a store-in shared cache across all cores in the PU chip. It has 192 x 512 KB eDRAM macros, dual address-sliced and dual store pipe support, an integrated on-chip coherency manager, cache, and cross-bar switch. The L3 directory filters queries from the local L4. Both L3 slices can deliver up to 16 GBps bandwidth to each core simultaneously. The L3 cache interconnects the eight cores, GX++ I/O buses, PCIe I/O buses, and memory controllers (MCs) with SC chips.

Inside the IBM z13s 2965

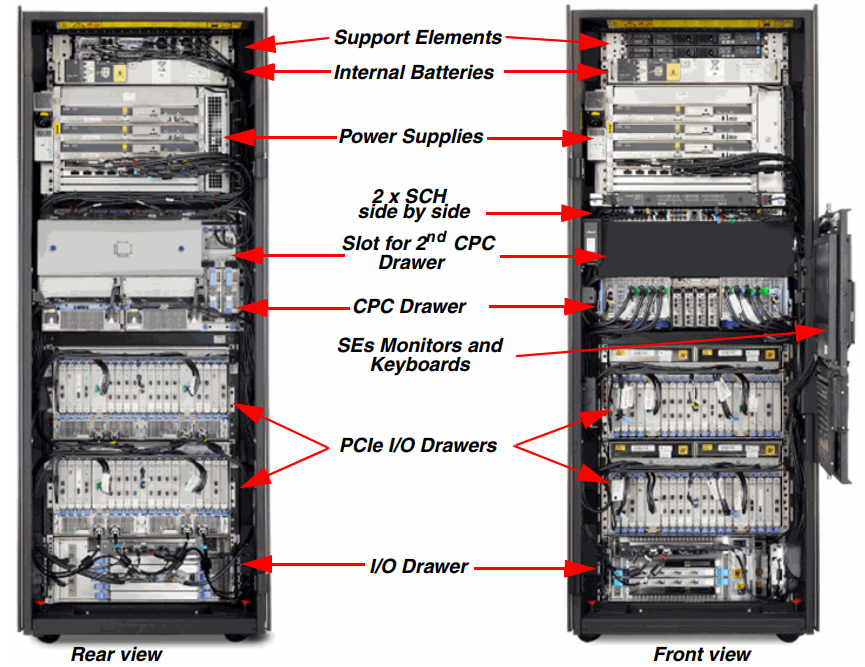

A look inside the IBM 2965 model z13s

IBM z13s 2965 MIPS Chart

ProcessorActive CPUsEstimated MipsMSU
2965-A0118010
2965-B0118811
2965-C0119812
2965-D01111014
2965-E01113016
2965-F01115019
2965-A02215019
2965-B02216521
2965-G01117221
2965-C02218423
2965-H01119324
2965-D02220726
2965-I01121627
2965-A03321727
2965-B03323930
2965-J01124230
2965-E02224430
2965-C03326633
2965-K01127234
2965-A04428135
2965-F02228235
2965-D03329938
2965-L01130338
2965-B04430939
2965-G02232340
2965-M01134042
2965-A05534142
2965-C04434443
2965-E03335344
2965-H02236345
2965-B05537547
2965-N01138148
2965-D04438648
2965-A06639850
2965-I02240651
2965-F03340751
2965-C05541852
2965-O01142753
2965-B06643855
2965-J02245557
2965-E04445657
2965-G03346758
2965-D05546959
2965-P01147760
2965-C06648861
2965-K02251164
2965-H03352465
2965-F04452666
2965-Q01153467
2965-D06654868
2965-E05555469
2965-L02257071
2965-I03358674
2965-R01159775
2965-G04460375
2965-M02263980
2965-F05563980
2965-E06664881
2965-J03365782
2965-S01166783
2965-H04467784
2965-N02271690
2965-G05573392
2965-K03373992
2965-T01174693
2965-F06674793
2965-I04475895
2965-O022803100
2965-L033823103
2965-H055823103
2965-U011834104
2965-J044849106
2965-G066857107
2965-P022897112
2965-I055921115
2965-M033923115
2965-V011933117
2965-K044954119
2965-H066961120
2965-Q0221004125
2965-J0551031128
2965-N0331034129
2965-W0111043130
2965-L0441063133
2965-I0661076135
2965-R0221122140
2965-O0331159144
2965-K0551159144
2965-X0111166145
2965-M0441193148
2965-J0661205150
2965-S0221254156
2965-L0551291161
2965-P0331295161
2965-Y0111304162
2965-N0441336166
2965-K0661355168
2965-T0221402175
2965-Z0111430178
2965-M0551449180
2965-Q0331450180
2965-O0441498187
2965-L0661509188
2965-U0221568195
2965-R0331621202
2965-N0551624202
2965-P0441673208
2965-M0661694210
2965-V0221754218
2965-S0331811224
2965-O0551820225
2965-Q0441873232
2965-N0661898235
2965-W0221961243
2965-T0332025251
2965-P0552033252
2965-R0442094260
2965-O0662127264
2965-X0222192272
2965-U0332264281
2965-Q0552276282
2965-S0442340290
2965-P0662376295
2965-Y0222452304
2965-V0332533314
2965-R0552545315
2965-T0442617324
2965-Q0662660329
2965-Z0222688333
2965-W0332832351
2965-S0552843352
2965-U0442925362
2965-R0662974369
2965-X0333166392
2965-T0553180394
2965-V0443273406
2965-S0663322412
2965-Y0333541439
2965-U0553555441
2965-W0443658453
2965-T0663716460
2965-Z0333883481
2965-V0553977493
2965-X0444090507
2965-U0664154515
2965-W0554446551
2965-Y0444574567
2965-V0664647576
2965-X0554970616
2965-Z0445016622
2965-W0665195645
2965-Y0555558690
2965-X0665808721
2965-Z0556095756
2965-Y0666495806
2965-Z0667123884
