IBM z15 (IBM 8561) SPECS

This extends the IBM Z position as the industry-leading platform for mission-critical hybrid cloud, with new innovations across security, data privacy, and resilience. IBM z15, machine type 8561, provides a scalable, highly available platform that delivers differentiated value to enable business growth, reduce cost, and protect existing investments. The IBM z15 platform provides the hardware infrastructure, in a balanced system design, with the encryption capabilities that now make it possible to create a fortified perimeter around critical business data.

Highlights

The transformation of digital technologies continues to have a profound effect on business, creating and accelerating transformation of business activities, processes, competencies, and models.

To succeed, businesses must embrace this digital transformation, adopting agile processes and new technologies to deliver services and experiences that customers and clients demand.

Yet as they transform, enterprises must also ensure they maintain infrastructure security, protect data privacy, and meet increasing compliance requirements, all while providing 24×7 availability. These requirements apply extreme pressure on IT to securely deliver transformative services and provide ongoing management and support within tight time and budget constraints.

Data privacy and security

Pervasive encryption easily encrypts all data associated with an application, database, or cloud service — whether on premises or in the cloud, at rest or in flight. The IBM z15 extends this beyond the border of the IBM Z environment.

  • The IBM Z Data Privacy Passports, in conjunction with IBM z15 and available via an IBM z15 only PID, is being designed to enforce security and privacy protections to data not only on Z, but across platforms. It provides a data-centric security solution that enables data to play an active role in its own protection.
  • IBM Z Data Privacy for Diagnostics provides clients with the capability to protect sensitive data that may be included in diagnostic dumps. Now sensitive data can be tagged such that it can be identified in dumps with no impact to dump capture times. Tagged sensitive data in dumps can be secured and redacted before sending to third-party vendors.
  • There is a new Crypto Express7S adapter introduced on the IBM z15 whose design and format have been driven by the adoption of blockchain and other highly secure applications.

Business continuity and resilience

IBM Z is a market leader for uptime and resilience. The new z15 takes this leadership to a whole new level through letting you unlock the power of IBM Z to help you adapt to planned or unplanned events while keeping services and operations running smoothly and continuously, on premises or in the cloud.

  • IBM System Recovery Boost expedites everything you need to get back ready for workload execution, including planned operating system shutdown processing, operating system IPL (Initial Program Load), middleware/workload restart and recovery, and uniquely the client workload execution that follows helping you catch up for lost time. It will let businesses return their systems to doing normal work faster for scenarios such as planned software maintenance and patching, but also in the event of Disaster Recovery scenarios when you need it the most.
  • Enhancements in GDPS combined with System Recovery Boost also expedite and streamline the execution of GDPS recovery scripts which perform reconfiguration actions during various planned and unplanned operational scenarios. The combination of these capabilities allows you to plan and test more easily for key activities such as site switches, perform business continuity activities more quickly, and prove ability to comply with industry regulation.

Hybrid cloud readiness

You can build a hybrid cloud ecosystem while ensuring availability, security, and accessibility with flexibility as you deliver timely and efficient new services for your digital business. The IBM z15 server provides the availability required by your most mission-critical workloads and the security demanded by your most valuable data. Then a comprehensive portfolio of IBM solutions help you deploy and support your cloud environment, as well as expand access to it.

  • IBM Z software offerings combine to help you integrate and manage your ideal cloud environment.
    • In September 2019, IBM plans to introduce IBM z/OS Container Extensions (zCX), which is intended to enable access to a large ecosystem of open source and Linux on IBM Z applications that are planned to be deployed and managed within the native z/OS environment without requiring a separately provisioned and managed Linux server, using popular Docker container skills and patterns. This will allow you to be able to use the latest open source tools, popular NoSQL databases, analytics frameworks, application servers, and so on within your z/OS environment. It is intended that z/OS developers will gain DevOps agility through the use of Docker containers and the ability to deploy open source application development utilities, Linux-based shell environments, and so on.
  • IBM Integrated Accelerator for z Enterprise Data Compression is provided on each processor chip and uses industry-standard compression formats for file compression that can enable reduction in the size of data which can save storage space and increase data transfer rates. It can also reduce CPU consumption and costs associated with moving, processing, encrypting/decrypting, and otherwise manipulating smaller amounts of compressed data. IBM Integrated Accelerator for z Enterprise Data Compression interoperates compatibly with the zEDC compression used on previous IBM Z platforms and with industry-standard compression used on other platforms.
  • Ready for the cloud data center, the IBM z15 is housed in a new standardized 19-inch frame (one to four frames, depending on the configuration) that makes it ready for colocation and standardized facilities management.

Upgrade Path

Within z15 Model T01, upgrades from Max34 to Max71 to Max108 are concurrent. Any z14 M0x or z13 model can be upgraded to any z15 T01 feature disruptively. Upgrades from z15 Model T01 features Max34, Max71 and Max108 to features Max145 and Max190 are not allowed as these features are factory build only.

z14 M0x upgrade to z15 T01

When a z14 M0x (M/T 3906) is upgraded to a z15, the z14 driver level must be at least 36. Upgrading from z14 to z15 system is disruptive (frame roll).

z13 upgrade to z15 T01

When a z13 (M/T 2964) is upgraded to a z15 T01, the z13 must be at least at Driver level 27. Upgrading from z13 to z15 T01 system is disruptive (frame roll).

Technical Overview

This member of the IBM Z family, the IBM z15 uses a 19-inch form factor and industry-standardized power and networking hardware. The system is configurable as a one to four 19-inch frame system, which easily aligns with the modern cloud data center.

Core system:

  • 190 client configurable cores, an increase of 20 over the z14, with single processor capacity of z15 for equal n-way at common client configurations, approximately 14% greater than on z14 with some variation based on workload and configuration.
  • 25 % more total system capacity as compared to the z14 for exceptional scale in a single footprint.
  • More on-chip cache per core, compared to z14, to help minimize memory waits while maximizing the throughput of concurrent workloads — perfectly optimized for data serving.
  • Up to 40 terabytes (TB) of available Redundant Array of Independent Memory (RAIM) real memory per server to help improve transaction response times, lower CPU costs, simplify capacity planning, enlarge in-memory buffer pools, cache sysplex shared data and controls in Coupling Facilities, and ease deploying memory-intensive workloads.
  • IBM Integrated Accelerator for z Enterprise Data Compression, designed to reduce the cost of storing, transporting, and processing data without changing applications. It replaces the zEDC Express card on z14 and older generations of IBM servers, and interoperates compatibly with the zEDC compression used on previous IBM Z platforms and with industry-standard compression used on other platforms. Improved compression ratio (using Huffman coding) and order-preserving compression result in fewer CPU cycles to enable further compression of data, improving memory, transfer, and disk efficiency. With the IBM Z Integrated Accelerator for z Enterprise Data Compression you can achieve up to 17x more throughput capacity than the largest configured z14.
  • The z15 has 30+ new instructions codesigned and exploited by Java, new vector enhancements to improve analytics applications and new instructions for sort acceleration.

Security and cryptography:

  • A design for data protection and privacy allowing you to encrypt many new data sets transparently, which can help you to provide an envelope of protection around data placed on IBM Z. This includes cryptographic performance improvements with the Crypto Express7S (#0898 or #0899) and the IBM Z processor based cryptography with the CP Assist for Cryptographic Functions that helps enable the protection of data in flight or at rest.
  • Hardware accelerated encryption on every core with the Central Processor Assist for Cryptographic Function (CPACF) feature.
  • Processor improvements include Message-Security-Assist extension 9 providing support for elliptic curve cryptography authentication of messages, the generation of elliptic curve keys, and scalar multiplication. This is accomplished through a new instruction (Compute Digital Signature Authentication (KDSA)) which supports the ECDSA and EdDSA algorithms using curves P-256, P-384, P-521, Ed25519, and Ed448 and is in compliance with the Digital Signature Standard (DSS), National Institute of Standards and Technology (NIST) July 2013.
  • IBM Z Data Privacy Passports which will protect data not only on IBM Z, but across multicloud environments without application changes.

Network and I/O:

  • OSA-Express7S GbE, 10GbE, 1000Base-T, and 25GbE SR1.1.
  • FICON Express16SA (#0436, 0437) to help absorb large application and transaction spikes driven by large unpredictable analytic and mobile workloads.
  • An increase in the maximum number of coupling CHPIDs per CPC from 256 with z14 to 384 with z15, which provides for improved virtualization of physical ICA SR and CE LR coupling links.
  • An increase in the maximum number of physical ICA SR coupling links per CPC from 80 on z14 to 96 on z15, and per drawer from 20 on z14 to 24 on z15.
  • An increase in the maximum number of internal coupling CHPIDs per CPC from 32 on z14 to 64 on z15.
  • A new level of Coupling Facility support, CFLEVEL 24, which provides optimized latch management, improved message path resiliency, and a change to the defaults for dynamic dispatching. For details see the Parallel Sysplex Enhancements section.
  • IBM zHyperLink Express1.1 (#0451), which uses a direct connect short distance link (zHyperLink) to deliver low latency connectivity between z15 and FICON storage systems. Working in conjunction with your existing FICON SAN infrastructure, zHyperLink Express1.1 delivers the next generation of I/O for IBM Z storage.

Systems management and infrastructure:

  • IBM Hardware Management Console (HMC) 2.15.0 with simplification updates to improve workspace and manage system time.
  • IBM Z Hardware Management Appliance (#0100), which can be used to create isolated partitions for protecting data and applications from cybercriminals.
  • Trusted Key Entry (TKE) 9.2 License Internal Code (LIC), (#0881).
  • Flexible configuration; each frame is an industry-standardized 19-inch frame taking up only two floor tiles of space. The system expands from one to four frames based on your requirements and potential growth.
  • System Recovery Boost which enables restoration of service from, and workload catch up after, both planned and unplanned outages faster than on any prior Z machine and with no additional IBM software costs, along with faster GDPS-orchestrated reconfiguration actions such as those involved in a planned or unplanned DR site switch.
  • Non-raised floor option, offering flexible possibilities for the data center.
  • Optional water cooling, providing the ability to cool systems with user-chilled water.
  • Optional top exit power and I/O cabling designed to provide increased flexibility.
  • ASHRAE class A3 for robustness, data center flexibility, and energy savings.
  • Upgradability to IBM z15 from IBM z14 and IBM z13 and upgradability within the IBM z15 family.
  • IBM Dynamic Partition Manager enhancements that provide a simplified, consumable, enhanced IBM Z experience, reducing the barriers of adoption for new and existing Linux on IBM Z and z/VM clients.

The performance advantage

IBM’s Large Systems Performance Reference (LSPR) method is designed to provide comprehensive z/Architecture processor capacity ratios for different configurations of central processors (CPs) across a wide variety of system control programs and workload environments. For IBM z15, the z/Architecture processor capacity indicator is defined with a 4XX, 5XX, 6XX, or 7XX notation, where XX is the number of installed CPs.

In addition to the general information provided for z/OS, the LSPR also contains performance relationships for z/VM and Linux operating environments.

The capacity per processor engine of an IBM z15 (8561) processor is expected to provide approximately a 14 % increase over that of a z14 (3906), with some variation, based on workload and configuration. The largest IBM z15 (8561-7J0) is expected to provide up to 25 % more capacity than the largest z14 (3906-7H0). The IFL and zIIP processors on the IBM z15 also provide an optional IBM z15 multithreading technology capability; with the multithreading function enabled, the performance capacity of an IFL or zIIP is expected to typically be up to 25 % higher than without the multithreading function enabled.

The LSPR contains the Internal Throughput Rate Ratios (ITRRs) for IBM z15 and the previous-generation IBM Z processor families based upon measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput that any user may experience will vary depending upon considerations such as the level of multiprogramming in the user’s job stream, the I/O configuration, the workload processed, and the LPAR configuration. Therefore, no assurance can be given that an individual user will achieve throughput improvements equivalent to the performance estimates stated.

For more detailed performance information, consult the Large Systems Performance Reference (LSPR) available at the Resource Link website.

Next-generation availability

z15 merges the RAS characteristics from the performance-optimized z14 family with the 19-inch frame from the z14 model ZR1. z15 introduces:

  • The use of IBM System Recovery Boost which expedites planned operating system shutdown processing, operating system IPL (Initial Program Load), middleware/workload restart and recovery, and the client workload execution that follows. It will let businesses return their systems to work faster, not just in disaster recovery scenarios, but after all kinds of disruptions, both planned and unplanned. Another aspect of System Recovery Boost is to expedite and streamline the execution of GDPS recovery scripts which perform reconfiguration actions during various planned and unplanned operational scenarios.
  • Processor and memory PU refresh, RAIM memory, and cache symbol ECC which are designed to provide a robust computing platform.
  • PU sparing, array macro sparing, micro-array masking integrated sparing, and expanded optics as a FRU which are used to reduce repair actions.
  • The wide use of redundancy in the power, cooling, and service network, which continues with the z15 family. A “power redundancy test” is provided so the customer can verify the server is power redundant before servicing their customer power feeds.
  • The improved “fill and drain” tool which reduces the service time when handling water (including discontinuing a server).

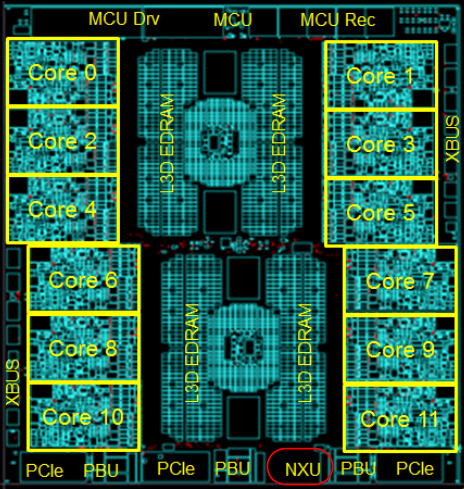

z15 12-Core Chip Details

The z15 PU chip (installed as a PU SCM) is an evolution of the z14 chip design. It includes the following features and improvements:

  • CMOS 14nm SOI technology
  • 12 core design (versus 10 for z14) with increased on-chip cache sizes
  • Three PCIe Gen4 interfaces (GX bus was dropped)
  • DDR4 memory controller
  • Two X-buses support cluster connectivity (PU SCM-to-PU SCM and PU SCM-to-SC SCM connectivity by way of X bus).
  • New EDRAM macro design with 2x macro density. Compared to z14 PU:
    – L3 was increased from 128 MB to 256 MB per chip
    – L2-I was increased from 2 MB to 4 MB per core
    – L2-L3 protocol was changed to reduce latency
  • On-chip compression accelerator (Nest Acceleration Unit – NXU)

IBM z15 8561 MIPS Chart

ProcessorActive CPUsEstimated MipsMSU
8561-401126733
8561-501178199
8561-60111151144
8561-70112055253
8561-402251265
8561-50221492185
8561-60222198271
8561-70223907481
8561-403375095
8561-50332184269
8561-60333214396
8561-70335711700
8561-4044982123
8561-50442858353
8561-60444200517
8561-70447467914
8561-40551209151
8561-50553516433
8561-60555160634
8561-705591701117
8561-40661430178
8561-50664158512
8561-60666094747
8561-7066108221313
8561-40771647204
8561-50774784588
8561-60777004859
8561-7077124251503
8561-40881860230
8561-50885394661
8561-60887890966
8561-7088139801687
8561-40992067255
8561-50995990734
8561-609987531070
8561-7099154881867
8561-410102270280
8561-510106571805
8561-6101095941170
8561-71010169512037
8561-411112469305
8561-511117138875
8561-61111104121265
8561-71111183692204
8561-412122663329
8561-512127690941
8561-61212112091359
8561-71212197462367
8561-413132852352
8561-5131382301007
8561-61313119851452
8561-71313210812526
8561-414143038375
8561-5141487561070
8561-61414127411541
8561-71414223762677
8561-415153220397
8561-5151592691129
8561-61515134771627
8561-71515236322819
8561-416163397419
8561-5161697701188
8561-61616141931712
8561-71616248502953
8561-417173571440
8561-51717102581247
8561-61717148911795
8561-71717260323084
8561-418183744461
8561-51818107431304
8561-61818155831878
8561-71818272133213
8561-419193916482
8561-51919112251361
8561-61919162691959
8561-71919283923342
8561-420204086503
8561-52020117031418
8561-62020169492037
8561-72020295693472
8561-421214256524
8561-52121121781475
8561-62121176242116
8561-72121307463605
8561-422224425544
8561-52222126491530
8561-62222182922195
8561-72222319203742
8561-423234593565
8561-52323131181585
8561-62323189552273
8561-72323330943880
8561-424244760585
8561-52424135831640
8561-62424196132351
8561-72424342664017
8561-425254927606
8561-52525140441695
8561-62525202652429
8561-72525354364154
8561-426265092626
8561-52626145031750
8561-62626209112506
8561-72626366064291
8561-427275256645
8561-52727149581803
8561-62727215522582
8561-72727377734428
8561-428285420664
8561-52828154101857
8561-62828221872655
8561-72828389404565
8561-429295582684
8561-52929158591910
8561-62929228172727
8561-72929401054702
8561-430305744704
8561-53030163051963
8561-63030234412798
8561-73030412684838
8561-431315905724
8561-53131167482014
8561-63131240612867
8561-73131424314974
8561-432326065743
8561-53232171872065
8561-63232246752934
8561-73232435915110
8561-433336224763
8561-53333176242116
8561-63333252833001
8561-73333447515246
8561-434346382782
8561-53434180572167
8561-63434258873068
8561-73434459095382
8561-73535470615517
8561-73636482065651
8561-73737493455785
8561-73838504785918
8561-73939516046050
8561-74040527246181
8561-74141538396312
8561-74242549476442
8561-74343560496571
8561-74444571446699
8561-74545582346827
8561-74646593186954
8561-74747603967080
8561-74848614687206
8561-74949625347331
8561-75050635947455
8561-75151646497579
8561-75252656977702
8561-75353667407824
8561-75454677777946
8561-75555688098067
8561-75656698348187
8561-75757708548306
8561-75858718698425
8561-75959728788544
8561-76060738818661
8561-76161748798778
8561-76262758718895
8561-76363768589010
8561-76464778399125
8561-76565788159240
8561-76666797869354
8561-76767807519467
8561-76868817119579
8561-76969826669691
8561-77070836169803
8561-77171845609913
8561-772728550210024
8561-773738644110134
8561-774748737810244
8561-775758831210353
8561-776768924410462
8561-777779017410571
8561-778789110110680
8561-779799202610789
8561-780809294810897
8561-781819386811004
8561-782829478611112
8561-783839570111219
8561-784849661411326
8561-785859752511433
8561-786869843311540
8561-787879933811646
8561-7888810024211752
8561-7898910114311857
8561-7909010204211963
8561-7919110293812068
8561-7929210383212173
8561-7939310472412277
8561-7949410561312381
8561-7959510650012485
8561-7969610738512589
8561-7979710826712692
8561-7989810914712796
8561-7999911002512899
8561-7A010011090113001
8561-7A110111177413104
8561-7A210211264513206
8561-7A310311351413308
8561-7A410411438113409
8561-7A510511524513511
8561-7A610611610713612
8561-7A710711696713712
8561-7A810811782413813
8561-7A910911868013913
8561-7B011011953414013
8561-7B111112038714113
8561-7B211212123814213
8561-7B311312208814313
8561-7B411412293514412
8561-7B511512378214511
8561-7B611612462614610
8561-7B711712546914709
8561-7B811812631114808
8561-7B911912715014906
8561-7C012012798915005
8561-7C112112882515103
8561-7C212212966015200
8561-7C312313049415298
8561-7C412413132515396
8561-7C512513215615493
8561-7C612613298415590
8561-7C712713381215687
8561-7C812813463715784
8561-7C912913546115881
8561-7D013013628315977
8561-7D113113710416073
8561-7D213213792416169
8561-7D313313874116265
8561-7D413413955716361
8561-7D513514037216456
8561-7D613614118516552
8561-7D713714199716647
8561-7D813814280716742
8561-7D913914361516836
8561-7E014014442216931
8561-7E114114522717025
8561-7E214214603117120
8561-7E314314683417214
8561-7E414414763417308
8561-7E514514843417401
8561-7E614614923217495
8561-7E714715002917588
8561-7E814815082517682
8561-7E914915162017775
8561-7F015015241317868
8561-7F115115320617961
8561-7F215215399718054
8561-7F315315478818146
8561-7F415415557718239
8561-7F515515636518331
8561-7F615615715218423
8561-7F715715793818516
8561-7F815815872318608
8561-7F915915950718700
8561-7G016016028918791
8561-7G116116107118883
8561-7G216216185218974
8561-7G316316263119066
8561-7G416416340919157
8561-7G516516418619248
8561-7G616616496219339
8561-7G716716573719430
8561-7G816816651119521
8561-7G916916728419611
8561-7H017016805619702
8561-7H117116882719792
8561-7H217216959619882
8561-7H317317036519972
8561-7H417417113220062
8561-7H517517189920152
8561-7H617617266420242
8561-7H717717342820332
8561-7H817817419120421
8561-7H917917495420510
8561-7I018017571520600
8561-7I118117647520689
8561-7I218217723320778
8561-7I318317799120866
8561-7I418417874820955
8561-7I518517950421044
8561-7I618618025821132
8561-7I718718101221221
8561-7I818818176521309
8561-7I918918251621397
8561-7J019018326721485
IBM z15 (IBM 8561) Maintenance

In the IBM world, engineers possessing the skills capable of the highest expertise are recognized as “top guns.” Top Gun is internationally recognized as a top performer for IBM Z maintenance and support for enterprise-critical hardware within the data center.  Top Gun maintenance support for IBM Z helps you avoid problems before they happen. Our highly skilled IBM Z engineers act as an extension of your IT staff, problems are resolved quickly, improving your system availability, and productivity.

THE TOP GUN DIFFERENCE.

Powered by ServiceNow, Top Gun Technology provides TPM 2.0™ maintenance services that are uniquely designed to deliver the highest quality of infrastructure support for mission critical operations.

Mission Critical - The Top Gun Difference

Let’s Talk IT Hardware Solutions

Top Gun will provide customized hardware solutions designed to meet your technical and financial requirements for products manufactured by Brocade, Cisco, Dell EMC, Hitachi Vantara, HPE, IBM, Juniper and NetApp.
