IBM BC12 (IBM 2828) SPECS

When your business needs a mainframe server that’s up to the task for nearly any application you throw at it, our refurbished IBM BC12 most likely fits the bill. Take on challenges that were impossible just a few years ago. This mainframe utilizes machine learning to help you develop new processes and adapt them as time goes on, so your business can become more agile in understanding and making use of new data. See what makes our used IBM BC12s special.

Highlights

The IBM zEnterprise System is a modern mainframe that is uniquely suited to deliver industry-leading innovation and value. It allows your organization to exploit new technologies to help improve efficiency and speed time-to-market. It is designed to unlock the power of big data with the integration of business intelligence and transactional processing to help deliver competitive advantages through actionable insights gained from real-time analytics. Advanced virtualization features like multisystem virtualization and Live Guest Relocation with System z, z/VM, and Linux on System z help to provide an efficient infrastructure for deploying private clouds for workloads that scale both horizontally and vertically at a low total cost of ownership. And, with its high level of security, you can put your trust in the IBM zEnterprise System to protect your most valuable information, helping to reduce organizational and reputational risk.

The zBC12 is designed to provide an optimized infrastructure that allows you to:

  • Energize your applications through integration, embedded real-time analytics, and enterprise mobility
  • Consolidate distributed workloads with Linux on System z and reinvest potential savings to fuel business growth
  • Protect your valuable data and brand reputation with trusted security

Energize your applications with more performance, flexibility, and scalability

  • A 4.2 GHz processor designed to deliver up to a 36% performance increase per core to help boost software performance for business- critical workloads
  • Up to six general purpose processors (CPs) designed to deliver up to 58% more capacity as compared to the z114, which had five general purpose processors
  • Up to a 2x increase in available memory (496 GB) compared to the previous generation (z114) for improved performance of memory- demanding workloads such as DB2, IBM WebSphere, and Linux on System z
  • Up to 20% greater granularity with 156 capacity settings on each model, giving you the freedom to choose the right capacity setting for your needs with the flexibility to scale on demand as workload demands increase

Refresh your technology now to help you save more money

  • Improved platform economics for an upgrade opportunity that is more affordable than ever
  • The same low-cost entry-level offering as the z114 with twice the capacity, designed to provide increased value
  • Continuation of the IBM System z Solution Edition Series to help dramatically lower the cost of deploying new business applications
  • Up to 13 Integrated Facility for Linux (IFL) processors to help consolidate 62% more work while gaining a 27% price performance improvement for Linux on System z, making it an attractive choice for distributed workload consolidation
  • Up to 27% price performance improvement across the entire portfolio of specialty engines to help significantly lower costs for new workloads

Upgrade Path

A zBC12 Model H06 can be upgraded to a Model H13, and the Model H13 can be upgraded to an air-cooled zEC12 Model H20. All of these upgrades are disruptive (that is, the machine is unavailable during these upgrades). Any z10 BC or z114 model can be upgraded to any zBC12 model, which is also disruptive. Figure 1-2 shows a diagram of the upgrade paths.

Upgrade a z114 to a zBC12
When a z114 is upgraded to a zBC12, the z114 driver level must be at least 93. If a zBX is involved, the driver 93 must be at bundle 27 or higher. When upgrading a z114 that controls a zBX Model 002 to a zBC12, the zBX is upgraded to a Model 003

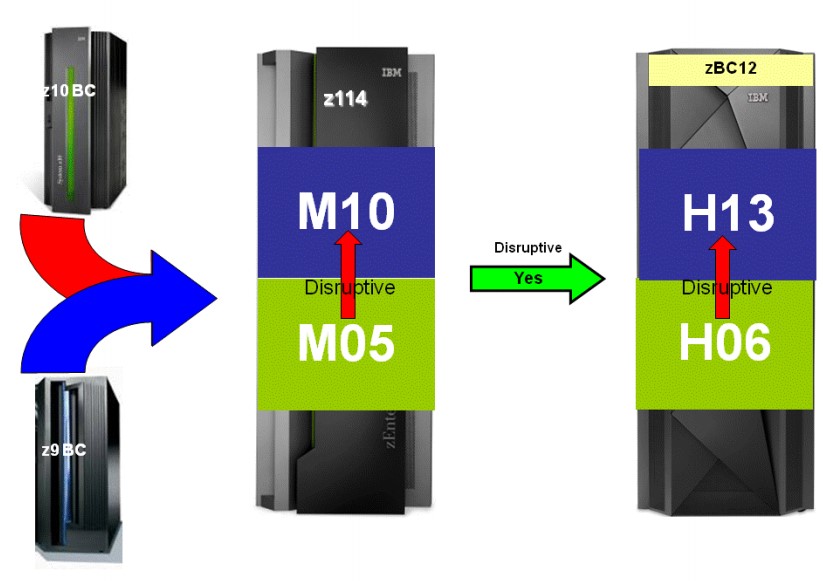

Diagram of potential upgrade paths for model 2828 of the IBM BC12

Technical Overview

The IBM 2828 is a zEnteprise BC12 (zBC12). With improved processor performance, increased capacity, hybrid computing capabilities, and significant power, space, and cooling benefits, the zBC12 is a perfect fit for infrastructure simplification and cloud computing. The zBC12 is a single frame system with a 4.2 GHz processor frequency and increased cache sizes.

The 2828 zEnterprise family, the IBM zEnterprise BC12 (zBC 12) is designed to help enterprises of all sizes improve customer service by exploiting the latest capabilities of the zEnterprise System. These include an efficient and flexible cloud delivery model, real-time data analytics, and enterprise mobility, all helping you leverage a highly secure and resilient infrastructure.

As an entry point for Enterprise Systems computing, the zBC12 is designed to enable new business capabilities while delivering increased performance and granular growth options in a smaller, more cost-effective footprint.

The zBC12 is also designed to provide continued investment protection to allow you to start small and rapidly expand. You can upgrade from the IBM System z10 Business Class (z10 BC) or the IBM zEnterprise 114 (z114) to the zBC12, as well as from the zBC12 to the IBM zEnterprise EC12 (zEC12) for maximum capacity to support your continued business growth.

Combined with the enhanced IBM zEnterprise BladeCenter Extension (zBX) Model 003 and IBM zEnterprise Unified Resource Manager (zManager), the zBC12 offers a proven hybrid computing design that can help you manage and integrate workloads across multiple architectures (System z, UNIX, and Intel) with the simplicity of a single system.

Inherent in the design of the zBC12:

  • A 4.2 GHz processor designed to deliver up to a 36% performance increase per core compared to the z114
  • Up to six general purpose processors (CPs) designed to deliver up to 58% more capacity as compared to the z114
  • Up to 20% greater granularity with 156 capacity settings on either the Model H06 or Model H13
  • Up to 13 Integrated Facility for Linux (IFL) processors to help consolidate up to 62% more work for Linux on System z
  • Up to a 2x increase in available memory (496 GB) compared to the z114 for improved performance of memory-demanding workloads such as DB2, IBM WebSphere, and Linux on System z
  • Top Exit I/O and power cabling
  • Investment protection with upgrade paths from the z10 BC and z114 to the zBC12

Features and functions:

  • Capacity limit enforcement with an LPAR enhancement
  • Enhanced CPU and availability management for zManager environments
  • GDPS automated multisite recovery for zBX
  • Continued support to help rapidly address service disruptions with IBM System z Advanced Workload Analysis Reporter (IBM zAware)
  • Compression acceleration with the zEDC Express feature
  • Reduced latency and lower CPU overhead with the 10GbE RoCE Express feature
  • Enhanced cryptographic support of the Common Cryptographic Architecture and the IBM zEnterprise Public-Key Cryptography Standards
  • Enhanced Trusted Key Entry workstation support with new functions for ease of use and continued industry compliance
  • Improved resilience and performance for coupling environments with a new level of Coupling Facility Control Code (Level 19) for exploitation of Coupling Thin Interrupts

zBC12 6-Core Chip Details

The zBC12 PU chip is an evolution of the IBM zEnterprise 114 (z114) core design, and uses the following improvements:

  • CMOS 13S technology
  • Out-of-order (OOO) instruction processing
  • Higher clock frequency
  • Larger caches

Compute-intensive workloads can achieve additional performance improvements through higher clock frequency, larger caches, and compiler enhancements to provide applications the benefit of the new execution units.Schematic of the six core IBM zBC12 2828 Processor

Each PU chip has up to six cores running at 4.2 GHz. The PU chips come in two versions, having four active cores or five active cores.

Each PU chip has 2.75 billion transistors. Each one of the six cores has its own L1 with 64 kilobytes (KB) for instructions and 96 KB for data. Next to each core there is its private L2 cache, with 1 MB for instructions and 1 MB for data.

There is one 24 MB L3 cache. The L3 cache is a store-in shared cache across all six cores in the PU chip. It has 96 x 512 KB enhanced dynamic random access memory (eDRAM) macros, dual address-sliced and dual store pipe support, an integrated on-chip coherency manager, cache, and cross-bar switch.The L3 directory filters queries from local L4. Both L3 slices can deliver up to 160 Gbps bandwidth to each core simultaneously. The L3 cache interconnects the six cores, GX I/O buses, and memory controllers (MCs) with SC chips.

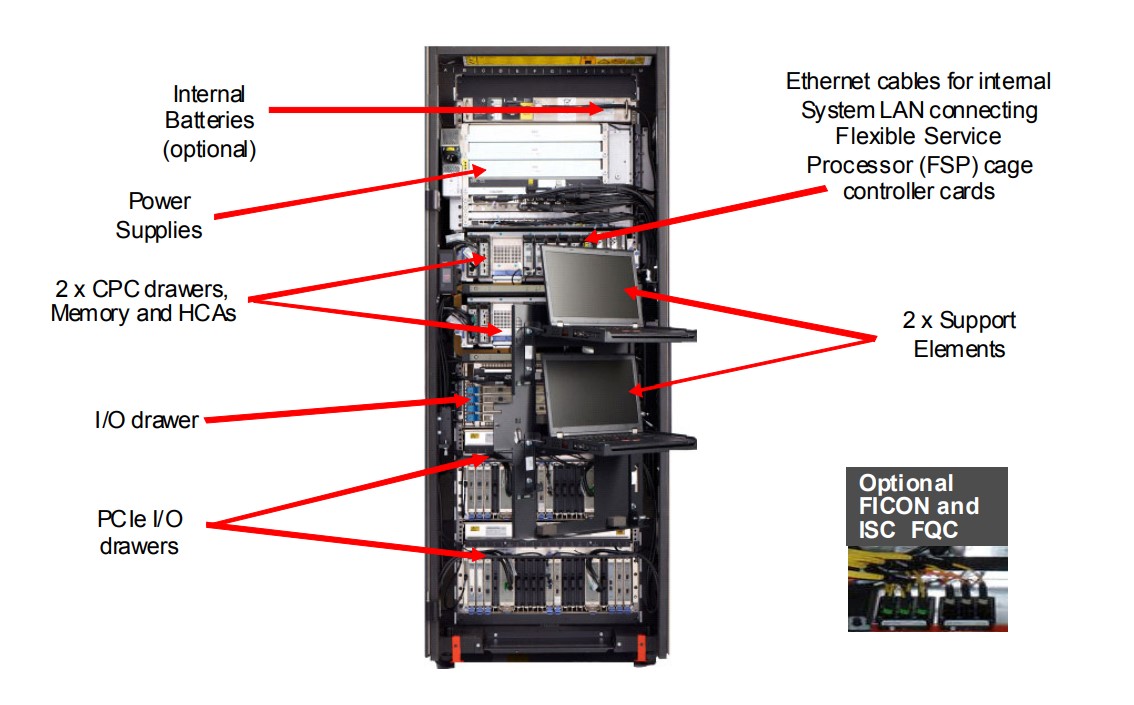

Inside the IBM zBC12 2828

Detailed look at inside a frame of a BC12 2828

IBM zBC12 2828 MIPS Chart

ProcessorActive CPUsEstimated MipsMSU
2828-A011506
2828-B011597
2828-C011709
2828-D0118010
2828-E0118811
2828-A0229111
2828-F0119812
2828-B02210814
2828-G01111014
2828-C02212816
2828-A03313016
2828-H01113016
2828-D02214618
2828-I01115019
2828-B03315319
2828-E02216120
2828-A04416621
2828-J01117221
2828-F02217922
2828-C03318223
2828-K01119324
2828-B04419625
2828-A05520125
2828-G02220125
2828-D03320826
2828-L01121627
2828-E03322929
2828-A06623329
2828-C04423329
2828-B05523730
2828-H02223730
2828-M01124230
2828-F03325532
2828-D04426633
2828-N01127234
2828-I02227434
2828-B06627534
2828-C05528135
2828-G03328636
2828-E04429337
2828-O01130338
2828-J02231440
2828-D05532140
2828-C06632641
2828-F04432641
2828-H03333842
2828-P01134042
2828-K02235244
2828-E05535344
2828-G04436646
2828-D06637347
2828-Q01138148
2828-I03339049
2828-F05539349
2828-L02239449
2828-E06641051
2828-R01142753
2828-H04443354
2828-G05544255
2828-M02244255
2828-J03344756
2828-F06645757
2828-S01147860
2828-N02249662
2828-I04449962
2828-K03350263
2828-G06651264
2828-H05552265
2828-T01153667
2828-O02255369
2828-L03356270
2828-J04457372
2828-U01160175
2828-I05560275
2828-H06660676
2828-P02262178
2828-M03362978
2828-K04464380
2828-V01167484
2828-J05569186
2828-Q02269587
2828-I06669987
2828-N03370788
2828-L04471990
2828-W01175695
2828-K05577597
2828-R02277997
2828-O03378898
2828-J066801100
2828-M044806101
2828-X011847106
2828-L055867108
2828-S022872109
2828-P033884110
2828-K066899112
2828-N044906113
2828-Y011950118
2828-M055972121
2828-T022978122
2828-Q033991123
2828-L0661,006125
2828-O0441,009125
2828-Z0111,064133
2828-N0551,092136
2828-U0221,097137
2828-R0331,110138
2828-M0661,127140
2828-P0441,132141
2828-O0551,216151
2828-V0221,230153
2828-S0331,243155
2828-N0661,267158
2828-Q0441,269158
2828-P0551,365170
2828-W0221,380172
2828-T0331,394174
2828-O0661,412176
2828-R0441,422177
2828-Q0551,530190
2828-X0221,546192
2828-U0331,563194
2828-P0661,584197
2828-S0441,591198
2828-R0551,714213
2828-Y0221,734216
2828-V0331,753218
2828-Q0661,775221
2828-T0441,785221
2828-S0551,919238
2828-Z0221,942241
2828-W0331,966244
2828-R0661,989247
2828-U0442,001248
2828-T0552,152267
2828-X0332,203273
2828-S0662,227276
2828-V0442,244278
2828-U0552,413299
2828-Y0332,470306
2828-T0662,497309
2828-W0442,517312
2828-V0552,706335
2828-Z0332,767343
2828-U0662,800347
2828-X0442,820349
2828-W0553,035376
2828-V0663,140388
2828-Y0443,163392
2828-X0553,400421
2828-W0663,522436
2828-Z0443,543439
2828-Y0553,814473
2828-X0663,946489
2828-Z0554,272529
2828-Y0664,426548
2828-Z0664,958614
